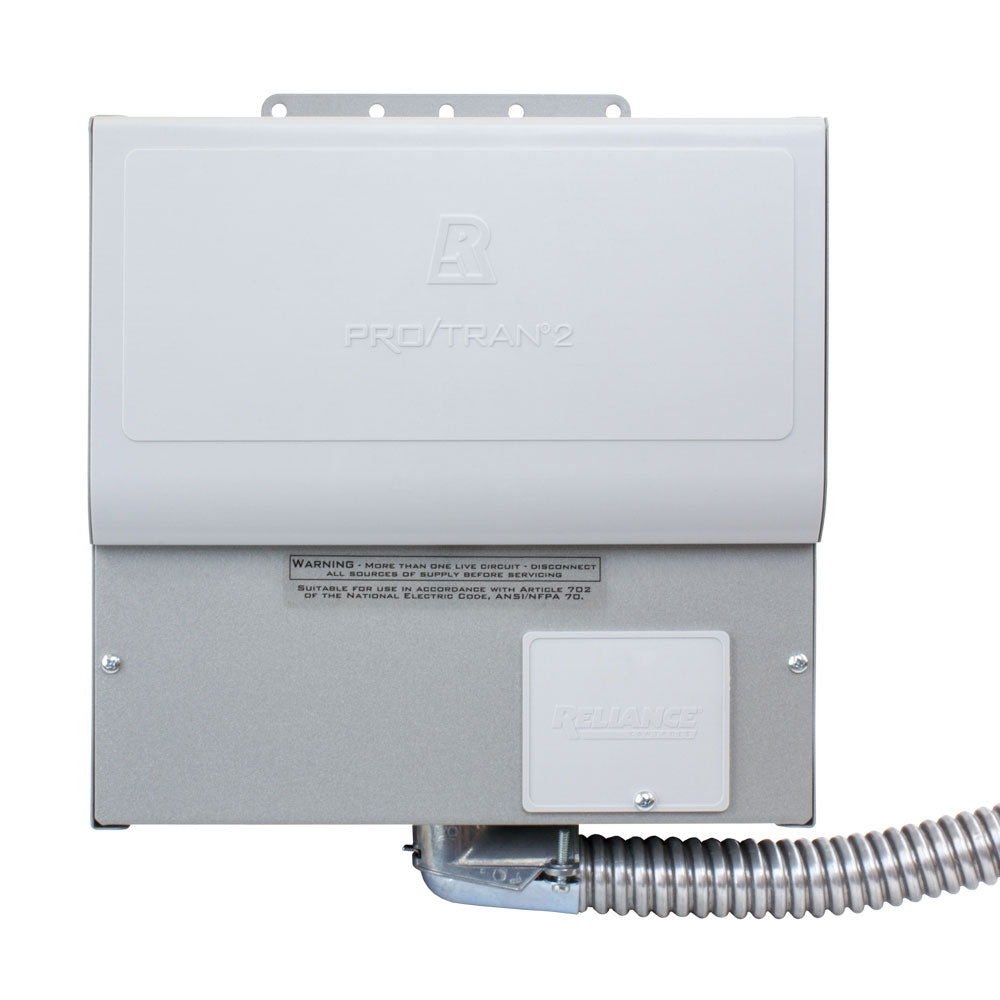

Reliance 310D 120/240-Volt 30-Amp 10-Circuit Pro/Tran Indoor Transfer Switch
Videos and 360° View
Product Images
- Details
- Details
- Support
- Reviews
Features
- Pro/Tran 2 30-Amp 10-Circuit 120/240V Manual Transfer Switch
- The next generation of Loadside manual transfer switches
- Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- NEW Color-Coded Built-In Wattage Meter
- Helps you balance and manager generator load
- 10 Single-Pole Circuits or 5 Double-Pole Circuits
- Versatile Connection
- Allows hardwiring OR plug-in connection via power inlet

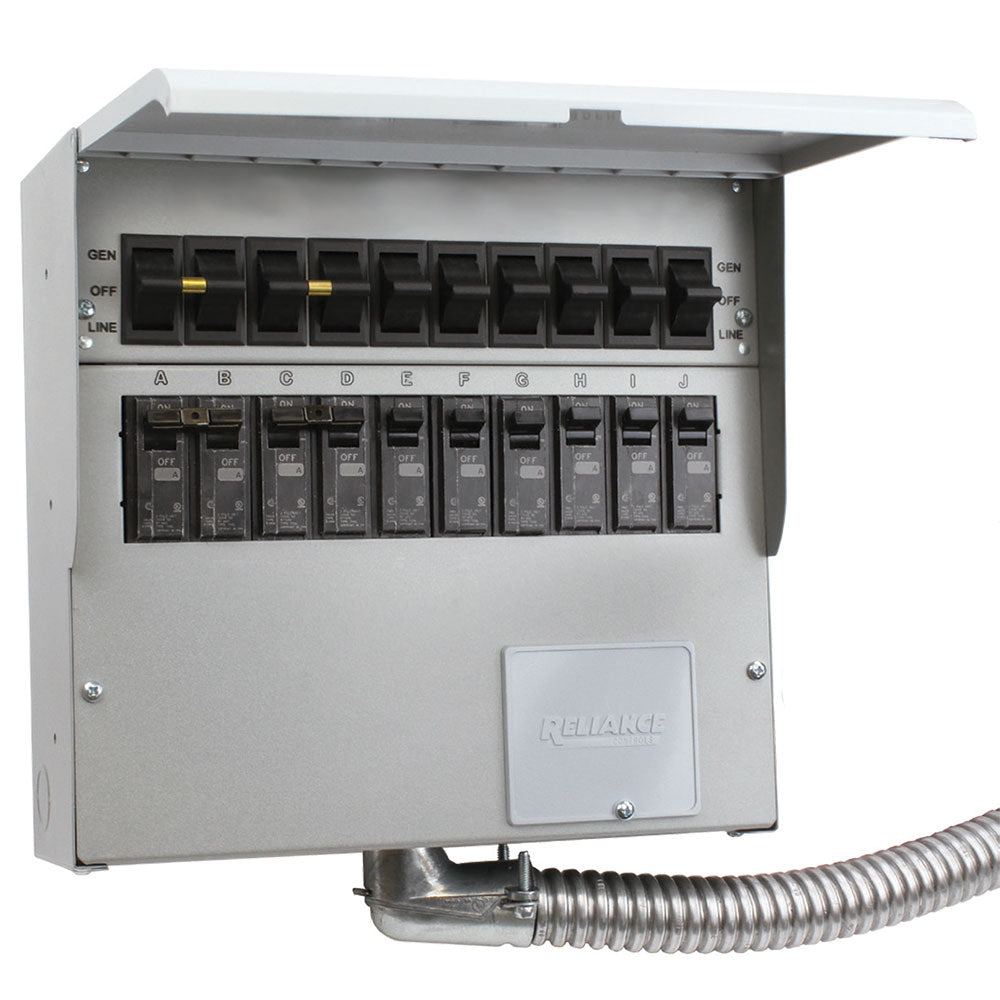

- Hinged, Non-Metalic Cover
- Protects toggle swtiches/breakrs and povides a finished apperance
- Powder-Coated Steel Cabinet For Indoor Installation
- 18 Flexible conduit w/ all factory wires clearly marked/colored
- (6) Combination 1/2 and 3/4 knockouts for easier installation
- Easily re-configured in the field for multiple 2-pole circuits
- Safety and Certifications
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
What's in The Box
- 120/240-Volt 30-Amp 10-Circuit Indoor Transfer Switch - 310D
- Owner's Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 310D |
| Brand | Reliance |
| Maximum Wattage | 7,500 |
| Voltage | 120/240 |
| Phase | Single |
| Frequency | 60 Hertz |
| Rated Amps | 60/30 |
| Max Generator Input | 30 Amps |
| Conduit Length (in.) | 18 |
| Enclosure | NEMA 1R |
| Circuits | 6 - 15A/120V
2 - 20A/240V |
| Circuit Breaker Protection | Each Circuit |
| Circuits Breakers | 10 |
| Weight (lbs.) | 13 (5.90 kilograms) |
| Dimensions (LxWxH) (in.) | 11 x 11.75 x 4.5 (27.94 x 29.85 x 11.43 cm) |
310D
$349.99
Add To Cart
