208cc 4-Stroke OHV Engine
Compact, heavy-duty, and perfect for projects that demand serious power.

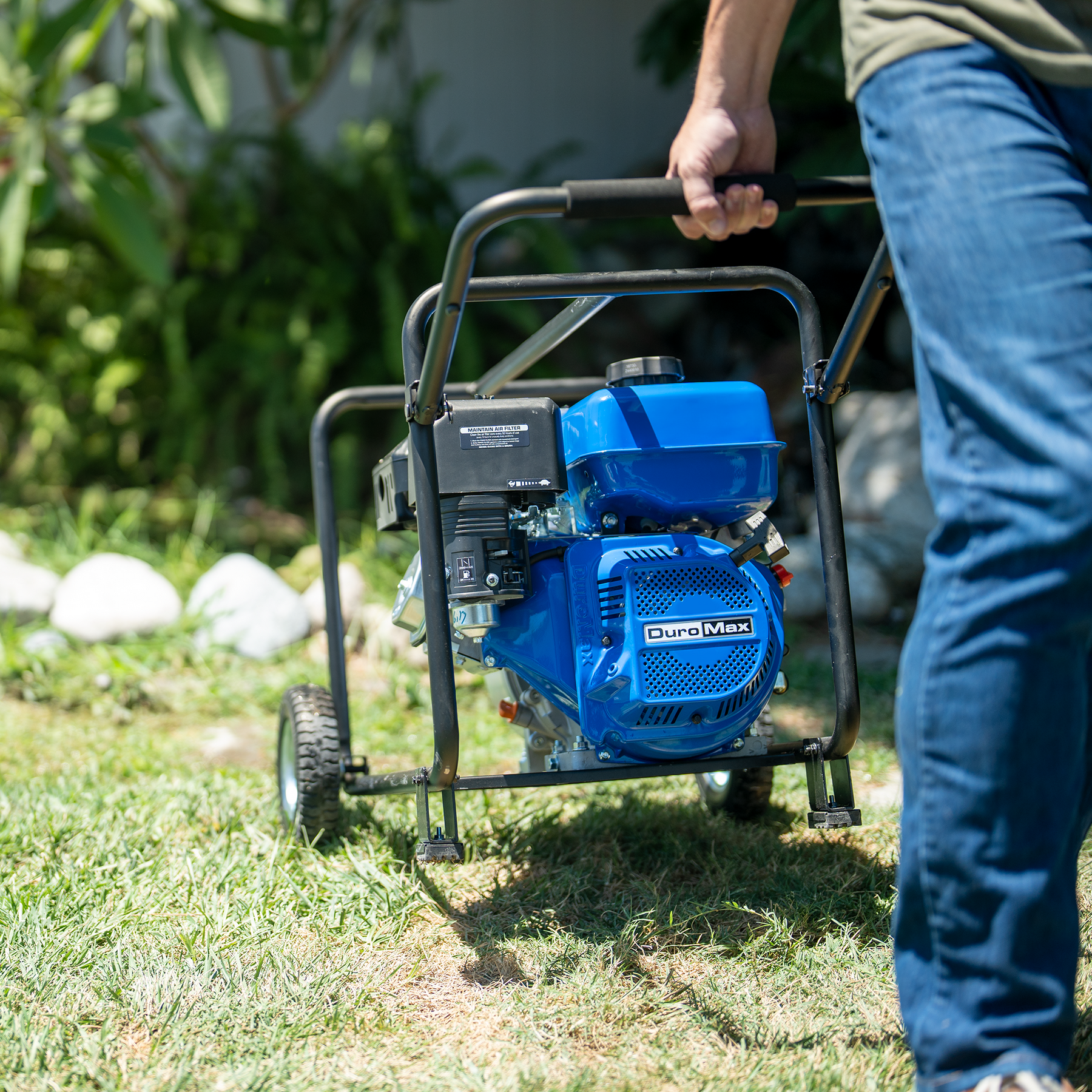

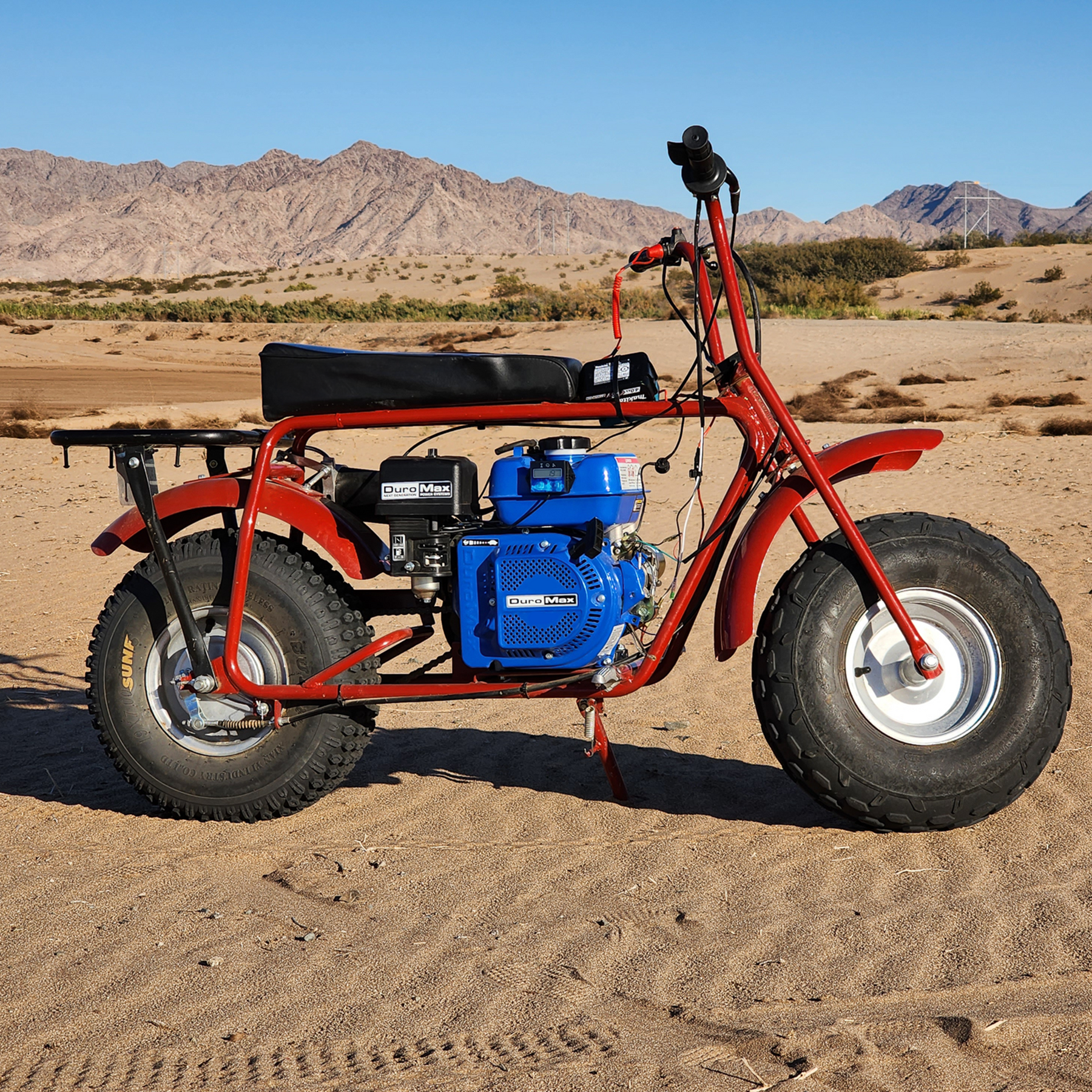

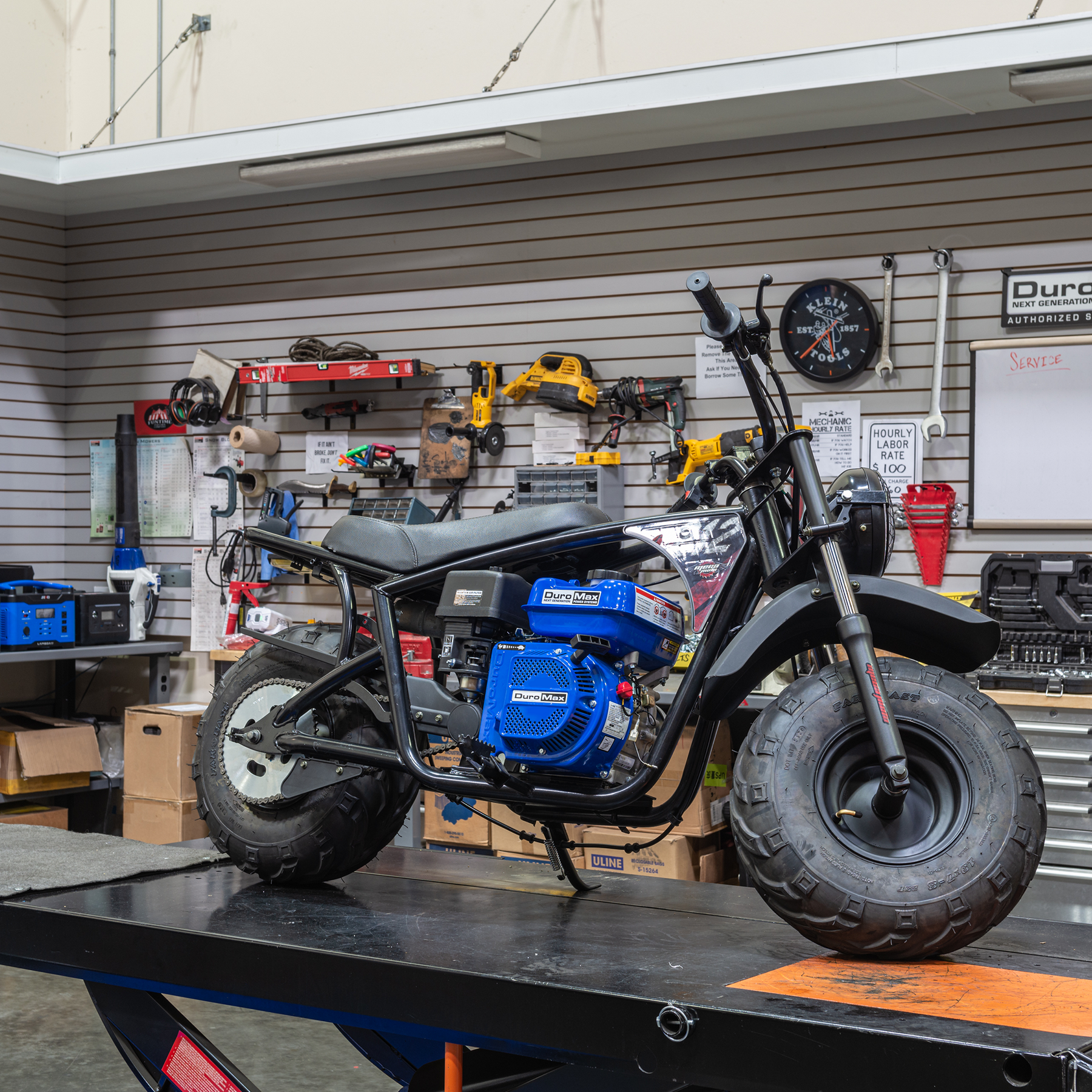

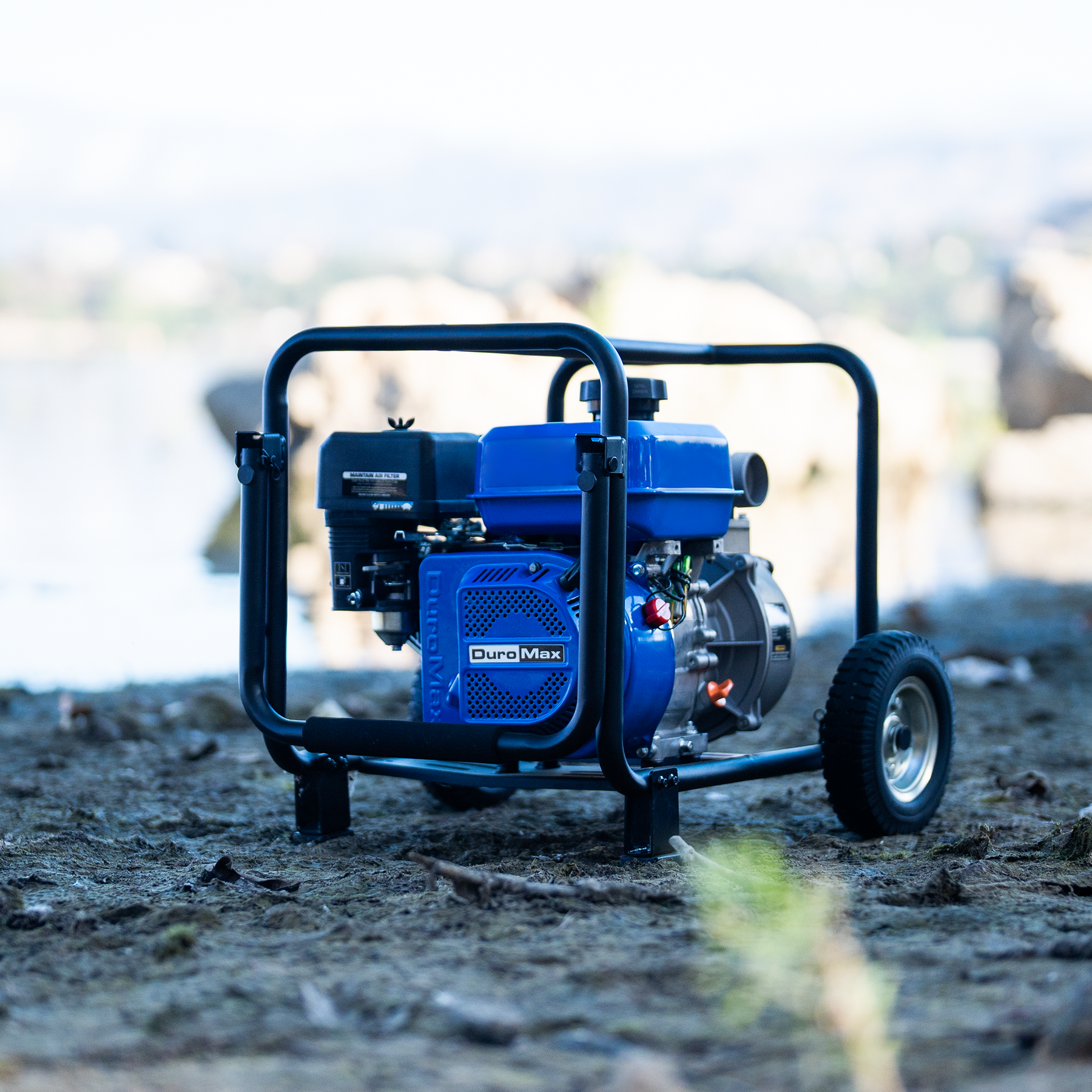

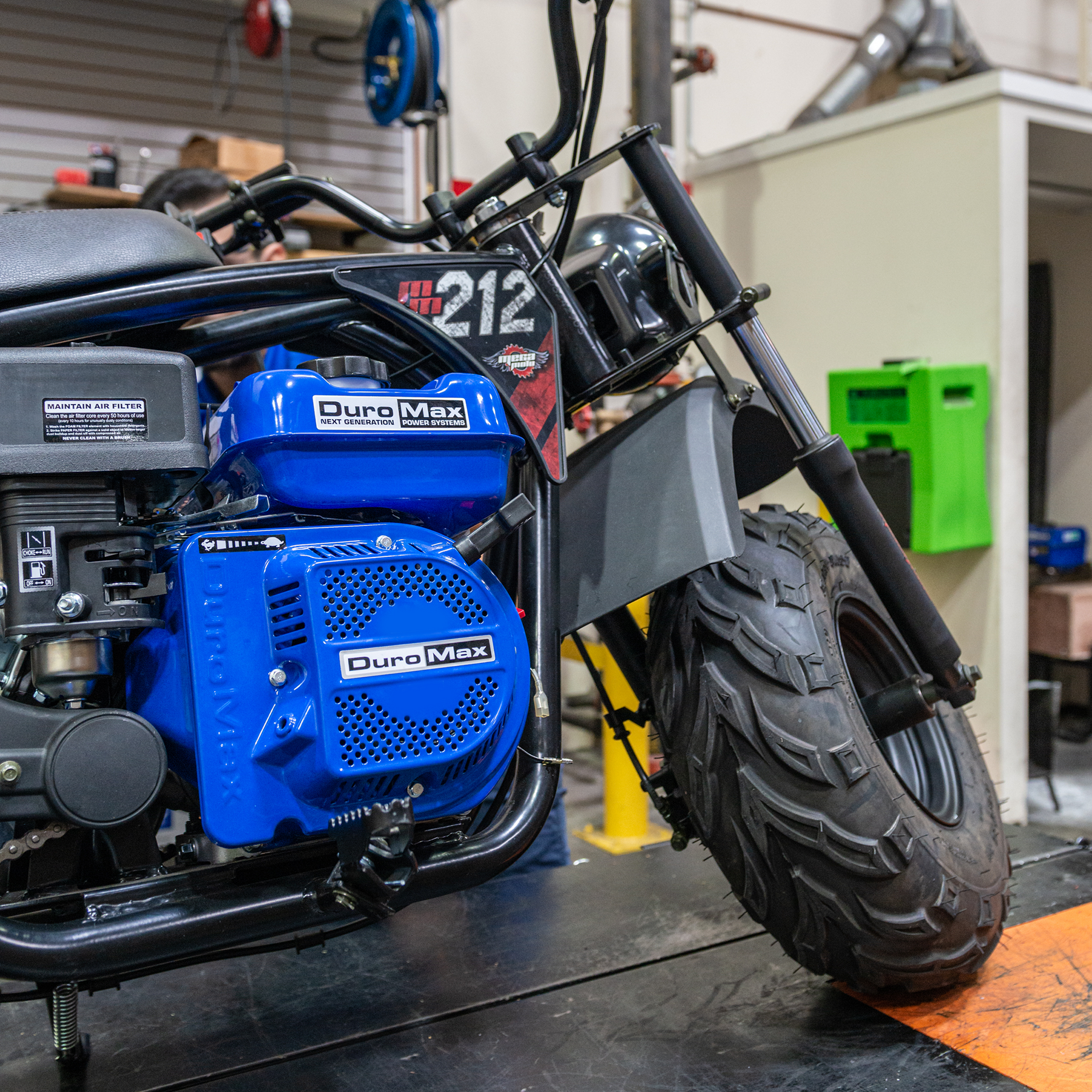

See How Our Customers Use Their DuroMax Engines!
XP7HP Specifications
| Specifications | |
| Manufacturer | DuroMax Power Equipment |
| Part # | XP7HP |
| Engine Type | 4-Stroke |
| Valve Type | OHV |
| Engine Cooling Type | Forced Air |
| Displacement | 208cc |
| Bore | 70mm |
| Stroke | 55mm |
| Max Output | 3600 RPM |
| Max Torque | 13.2 Nm / 9.7 ft/lb |
| Compression Ratio | 8.5:1 |
| Shaft Orientation | Horizontal |
| Shaft Size | 3/4" Diameter, 2-3/8" Long, 3/16" x 1.79" Keyway |
| Shaft End | 5/16" Size 24 UNF - Drilled and Tapped |
| Shaft Rotation | Counter Clockwise |
| Measurement from Center of Shaft to Base | 4.175" |
| Fuel Tank Capacity | 1 Gallons |
| Fuel Types | 87+ Octane Gasoline |
| Fuel Delivery System | Carburetor |
| Average Run Time | 1/4 Gallon Per Hour (at 1/2 load) |
| Starting Type | Recoil |
| Recoil Start | Yes |
| Cast Iron Sleeve | Yes |
| Bearing Type | Stainless Steel Ball Bearing |
| Oil Cooling Type | Splash |
| Oil Capacity | 20.3 fluid oz. |
| Recommended Oil | 10W-30 |
| Recommended Oil Types | Blended, Conventional, or Synthetic |

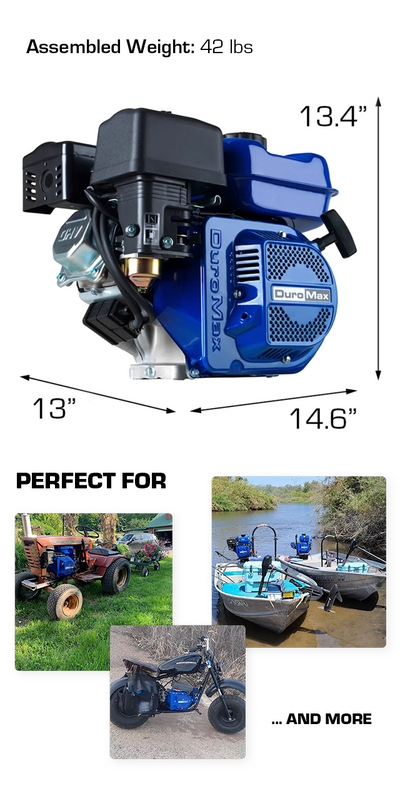

| Product Dimensions | 14.6"-Long x 13"-Wide x 13.4"-High |
| Product Weight | 32.6-lbs |
| UPC | 811640011192 |
| Warranty | Year |
| EPA Certified | Yes |
| CARB Certified | Yes |
| 50 State Emissions | Yes |
| What's in the Box? | DuroMax XP7HP Engine and Owner's Manual |
Mounting Diagrams
Measured in millimeters (mm)
Bottom
Shaft
Side
Related Items
Horizontal Engines
XP7HP Specifications
| Specifications | |
| Manufacturer | DuroMax Power Equipment |
| Part # | XP7HP |
| Engine Type | 4-Stroke |
| Valve Type | OHV |
| Engine Cooling Type | Forced Air |
| Displacement | 208cc |
| Bore | 70mm |
| Stroke | 55mm |
| Max Output | 3600 RPM |
| Max Torque | 13.2 Nm / 9.7 ft/lb |
| Compression Ratio | 8.5:1 |
| Shaft Orientation | Horizontal |
| Shaft Size | 3/4" Diameter, 2-3/8" Long, 3/16" x 1.79" Keyway |
| Shaft End | 5/16" Size 24 UNF - Drilled and Tapped |
| Shaft Rotation | Counter Clockwise |
| Measurement from Center of Shaft to Base | 4.175" |
| Fuel Tank Capacity | 1 Gallons |
| Fuel Types | 87+ Octane Gasoline |
| Fuel Delivery System | Carburetor |
| Average Run Time | 1/4 Gallon Per Hour (at 1/2 load) |
| Starting Type | Recoil |
| Recoil Start | Yes |
| Cast Iron Sleeve | Yes |
| Bearing Type | Stainless Steel Ball Bearing |
| Oil Cooling Type | Splash |
| Oil Capacity | 20.3 fluid oz. |
| Recommended Oil | 10W-30 |
| Recommended Oil Types | Blended, Conventional, or Synthetic |
| Product Dimensions | 14.6"-Long x 13"-Wide x 13.4"-High |
| Product Weight | 32.6-lbs |
| UPC | 811640011192 |
| Warranty | Year |
| EPA Certified | Yes |
| CARB Certified | Yes |
| 50 State Emissions | Yes |
| What's in the Box? | DuroMax XP7HP Engine and Owner's Manual |
Warranty Information
DuroMax stands behind this product with a 1 Year parts and technical service warranty. Our USA based teams are available to help walk-through, troubleshoot or diagnose. Nationwide service centers fix any issues - DuroMax has you covered!
